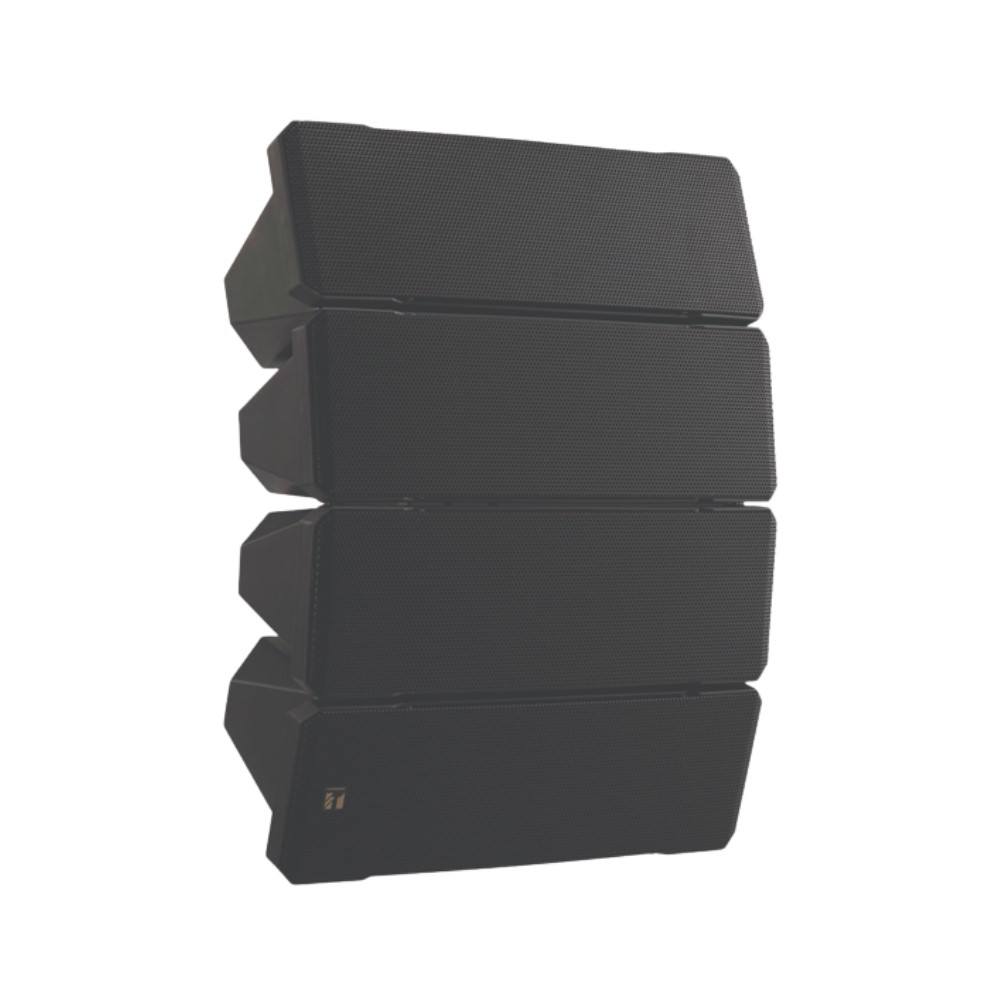

Compact Array Speaker TOA Z-5(B)(W)-HX2 series : The Z-5BW-HX2 is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The Z-5BW-HX2 is designed for outdoor use Enclosure : Sealed type Power Handling Capacity : Continuous: 200 W, Continuous program: 400 W (IEC 60268-5) Rated Impedance : 8 Ω Sensitivity (1 W, 1 m) : 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode) Frequency Response : 95 Hz - 20 kHz (-10 dB) (60° mode), 100 Hz - 20 kHz (-10 dB) (45° mode) 105 Hz - 20 kHz (-10 dB) (30° mode), 110 Hz - 20 kHz (-10 dB) (15° mode) Crossover Frequency : 4 kHz Directivity Angle : Horizontal: 100゜ (2 kHz or more) Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more),15゜ (3.2 kHz or more) variable Speaker Component : Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12 Speaker Cord : 2-core cabtyre cord with diameter of 6 mm Water Protection : IPX4 (Install with the every speaker module downward.) Operating Temperature -15 ℃ to +50 ℃ Finish Enclosure: Polypropylene, black Punched net: Surface-treated steel plate, black, rust proof coating Dimensions : 408 (W) × 546 (H) × 342 (D) mm Weight 16 kg Accessory : Hanging bracket …x2, Hex. wrench …x1 Option : Matching transformer: MT-200 Speaker mounting bracket: ZY-PF1WP, ZY-CW1WP, ZY-WM1WP, ZY-WM2WP, ZY-CN1B-WP*(Factory Preset: 60° mode *3 Bulan Garansi Service dan Sparepart.
