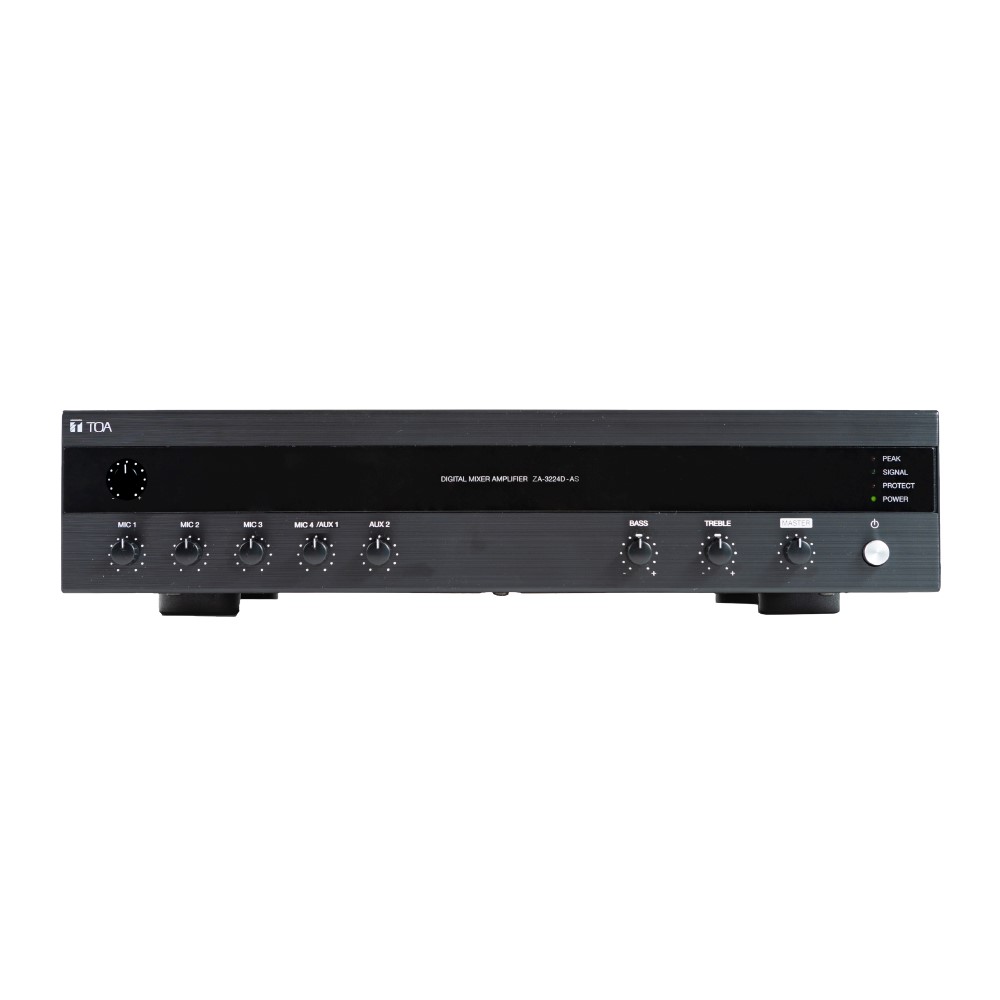

Digital Mixer Amplifier TOA ZA-3224DMZ-AS1 : ZA-3224DMZ-AS 1 is a high performance yet cost-effective mixer power amplifier equipped with MP3, Bluetooth function and Zone selection. Ideal for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms. Power Source 100 - 240 V AC, 50/60Hz Rated Output 240 W Power Consumption 62 W (AC operation at 1/8 maximum output without clip) Frequency Response 50 - 20,000 Hz Input MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record Output Speaker out: Speaker Output in screw type terminal Direct line (selectable): 42 Ω (100 V) or 4 Ω Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack 5-zone selector (all zones simultaneously selectable) Phantom Power DC +21 V (MIC 1) S/N Ratio Over 60 dB Total Harmonic Distortion Under 1% at 1 kHz, 1/3 rated power Tone Control Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Muting MIC 1: Mutes other input signals by 0-30 dB attenuation Indicator Power, Signal , Peak, Protect Ventilation Fan Cooling Finish Panel: ABS resin, black Case: Steel plate, black Dimensions 420 (W) × 100.9 (H) × 357 (D) mm Weight 5.1 kg Accessory Removable terminal plus (2 pins) x 5 *3 Bulan Garansi Service dan Sparepart.
