| SKU | : | CV PR-00344 |
| Status Produk | : | BARU |
| Kategori | : | amplifier |
| Merk | : | TOA |
| PPN | : | Harga Termasuk Pajak |
| PDN(Produk Dalam Negeri) | : | Ya |
| TKDN(Tingkat Komponen Dalam Negeri) | : | 0.00 % |
| Jenis TKDN | : | Tidak Mengetahui |
| Nomor TKDN | : | Tidak Mengetahui |
| UMKM | : | Ya |
| Panjang | : | 32,00 cm |
| Lebar | : | 23,00 cm |
| Tinggi | : | 19,00 cm |
| Berat | : | 2,00 kg |

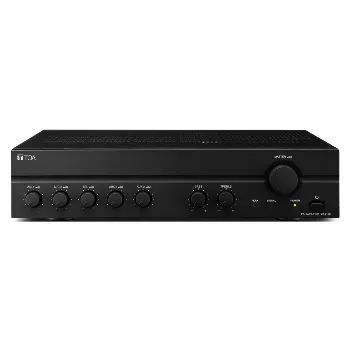

Mixer Amplifier 120W TOA ZA-2120 : The ZA-2120 is a high cost-performance power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms. Power Source 220 - 240 V AC, or 24 V DC Rated Output 120 W Power Consumption 124 W (AC operation EN60065), 8 A (DC operation at rated output) Frequency Response 50 - 20,000 Hz (±3 dB) Distortion Less Than 1% at 1 kHz, 1/3 rated power Input MIC 1 - 3: -60 dB* (1.0 mV), 600 Ω, balanced, phone jack AUX 1,2: -20 dB* (100 mV), 10 kΩ, unbalanced, RCA pin jack Output Speaker out: Balanced (floating) High impedance: 83 Ω (100 V), 42 Ω (70 V) Low impedance: 4 Ω (22 V) Rec out: 0 dB* (1.0 V), 600 Ω, unbalanced, RCA pin jack Phantom Power DC +21 V (MIC 1) S/N Ratio More Than 60 dB Tone Control Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz Muting MIC 1: Mutes other input signals by 0 - 30 dB attenuation Indicator Power LED, signal LED, peak LED Finish Panel: ABS resin, black Case: Steel plate, black Dimensions 420 (W) × 101 (H) × 360 (D) mm (16.5" × 4.0" × 14.2") Weight 10.8 kg (23.81 lb) *3 Bulan Garansi Produsen Service dan Sparepart. {ELK351}
